Food processing flooring case study · Ebbw Vale

120m² Food Processing Resin Flooring in Ebbw Vale

Q: How large was the Ebbw Vale flooring project?

The project covered approximately 120 square metres within the Express Contract Drying production facility in Ebbw Vale.

Q: How long did the project take?

The complete flooring package was delivered in three days.

Superior Resin Solutions refurbished 120m² of flooring for Express Contract Drying Ltd in Ebbw Vale, South Wales. The project included removal of the damaged original floor, diamond grinding, installation of a 6–9mm Resdev Pumadur HF heavy-duty polyurethane floor screed, 55 linear metres of coving and a 600mm RAL 3001 red perimeter band. The complete package was delivered in three days.

Book a Free Site Survey
Call 07462 436607

120m² food-processing area
Heavy-duty polyurethane screed
55m resin coving
RAL 3001 Red
Completed in 3 days

Project snapshot

120m²

Food-processing flooring refurbishmentExpress Contract Drying Ltd, Ebbw Vale, South Wales.

6–9mm

Resdev Pumadur HF polyurethane floor screedHeavy-duty system installed in RAL 3001 red.

55m

Hygienic resin covingApproximately 55 linear metres installed around the processing room.

3 days

Complete three-day programmeRemoval, preparation, flooring, coving and perimeter detailing.

The project brief

Heavy-duty hygienic flooring for food processing

In December 2022, Superior Resin Solutions completed this flooring refurbishment for Express Contract Drying Ltd at its Ebbw Vale facility.

The existing floor was damaged and stained and needed to be removed before the replacement system could be installed. Once the old flooring was taken up, the concrete beneath was found to be in reasonably good condition.

The exposed substrate was mechanically prepared by diamond grinding before the new flooring build-up began.

The project required a hard-wearing hygienic floor suitable for the operating conditions around food-processing equipment. SRS installed a 6–9mm Resdev Pumadur HF heavy-duty polyurethane floor screed in RAL 3001 red, together with hygienic coving and the coordinated perimeter detail.

Old damaged and stained flooring removed
Concrete substrate mechanically prepared by diamond grinding
6–9mm Resdev Pumadur HF polyurethane screed installed
55 linear metres of resin coving
600mm RAL 3001 red band applied to the surrounding cladding

Project requirement: the replacement floor needed to support hygiene, regular operational use, hot-water exposure from the process environment, chemical exposure and long-term durability.

Before and after

Transforming the processing area

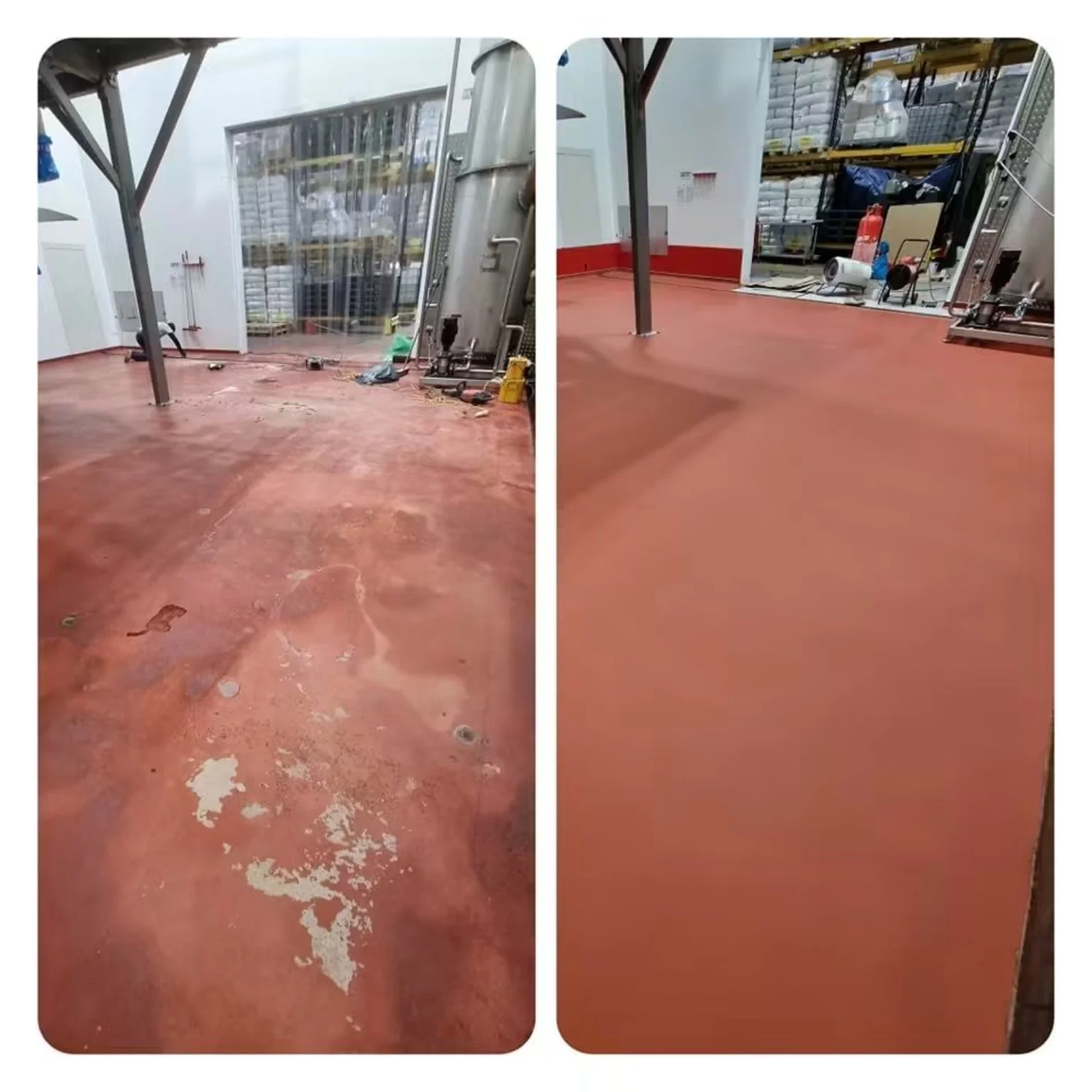

The photographs show the floor before refurbishment and the finished polyurethane screed after removal, mechanical preparation and installation.

Main processing area

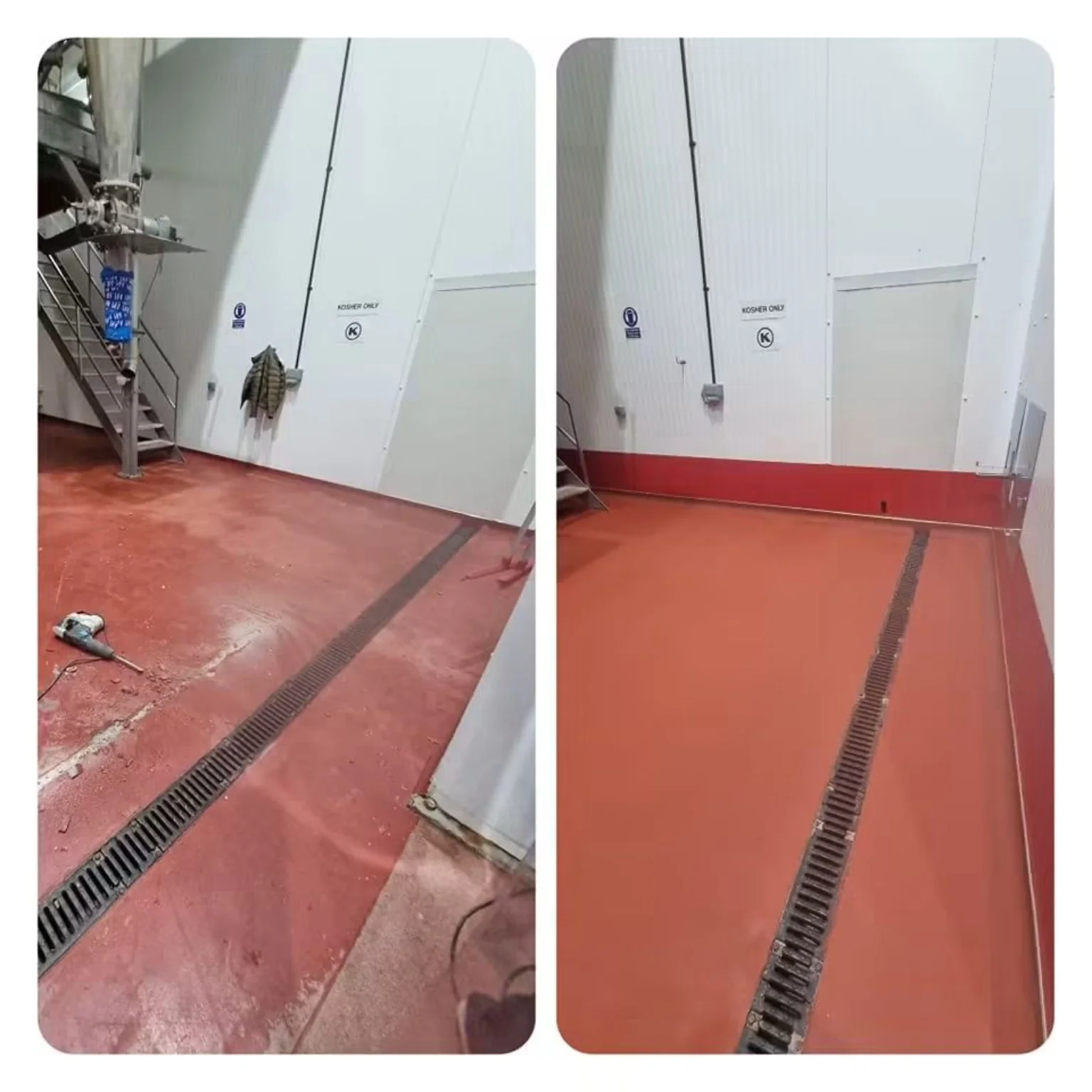

Ebbw Vale food production floor before and after Resdev Pumadur HF polyurethane screed installation

From damaged floor to heavy-duty polyurethane screed

The worn original surface was removed before the concrete was diamond ground and prepared for the new Pumadur HF system.

Drainage area

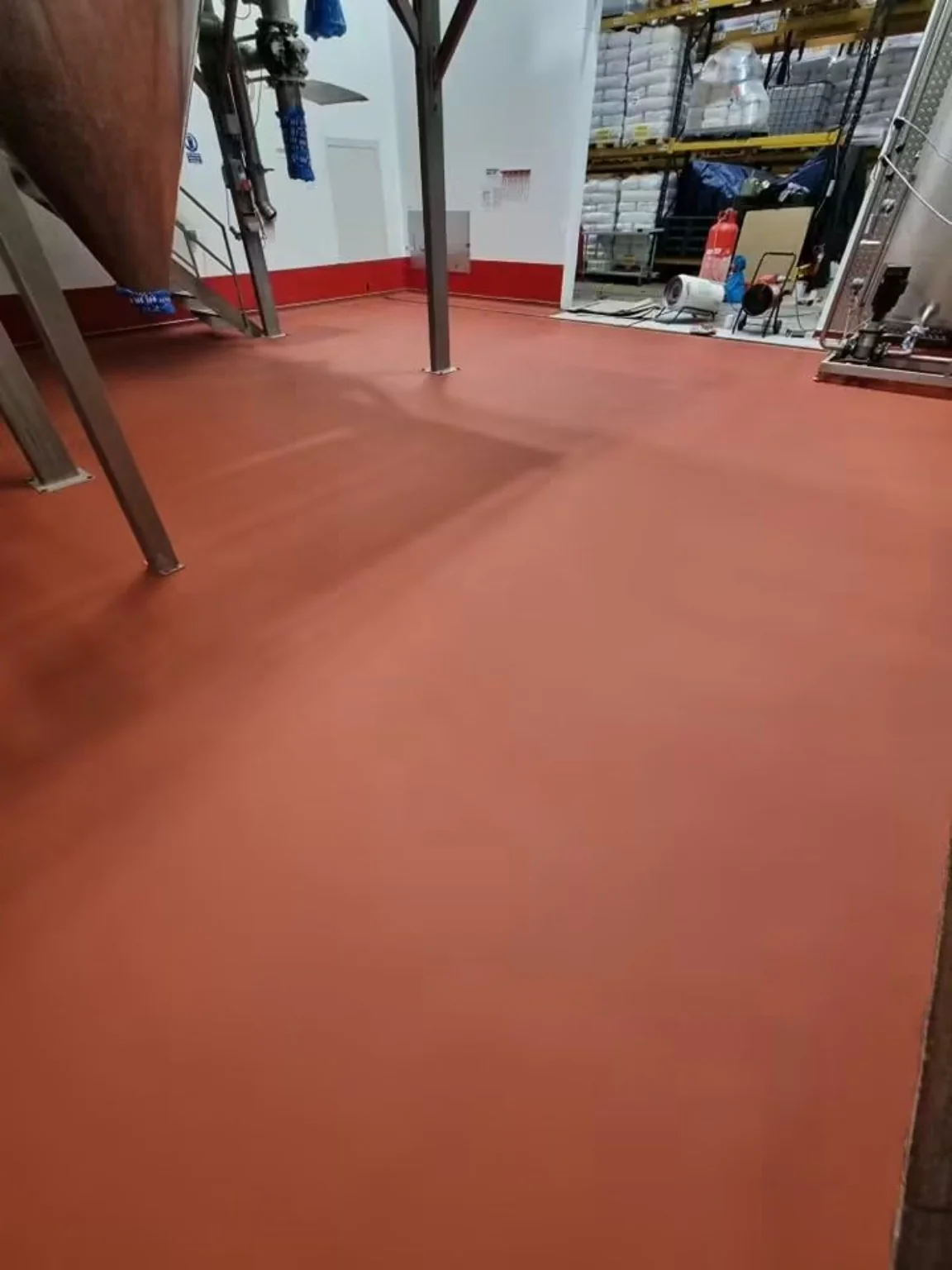

Before and after polyurethane resin flooring refurbishment around drainage in Ebbw Vale

Finished neatly around the drainage area

The new floor was installed around the existing drainage detail to maintain a consistent finish across the processing area.

Installed flooring system

6–9mm Resdev Pumadur HF polyurethane floor screed

The build-up combined removal of the old floor, diamond grinding, priming, heavy-duty polyurethane screed, resin coving and perimeter detailing.

ManufacturerResdev

Flooring systemPumadur HF heavy-duty polyurethane floor screed

Thickness and colour6–9mm · RAL 3001 Red

Hygienic detail55 linear metres of resin coving plus a 600mm red perimeter band

Remove the existing floor

The damaged and stained original flooring was removed so the concrete substrate could be exposed and assessed.

Diamond grind the concrete

The concrete was found to be in reasonably good condition and was mechanically prepared by diamond grinding before the new flooring build-up.

Prime and install Pumadur HF

The prepared substrate was primed before installation of the 6–9mm Resdev Pumadur HF polyurethane floor screed in RAL 3001 red.

Resdev Pumadur HF

Complete the coving and perimeter detail

Approximately 55 linear metres of resin coving were installed, with a 600mm red band applied to the surrounding cladding to complete the room perimeter.

How the project was delivered

Complete flooring package delivered in three days

The programme covered removal, mechanical preparation, priming, polyurethane screed installation, coving and the red perimeter detail.

Remove

The damaged and stained existing floor was removed to expose the concrete beneath.

Prepare

The exposed concrete was mechanically diamond ground to provide the prepared surface required for the new system.

Install

The floor was primed before installation of the 6–9mm RAL 3001 Resdev Pumadur HF polyurethane screed.

Detail

The coving and coordinated red cladding band completed the food-processing area refurbishment.

The completed result

A durable hygienic floor for a demanding processing area

The finished RAL 3001 Pumadur HF surface created a clean, robust floor around the processing equipment, drainage and room perimeter.

AREA

120m² completed

The processing area received a complete heavy-duty polyurethane flooring refurbishment.

55M

Hygienic coving installed

Approximately 55 linear metres of resin coving completed the room perimeter detail.

3 DAYS

Three-day programme

Removal, preparation, polyurethane screed installation, coving and detailing were completed in three days.

REPEAT

Long-term repeat client

Following the original project, SRS has continued completing further flooring works for the client, typically two to three times each year.

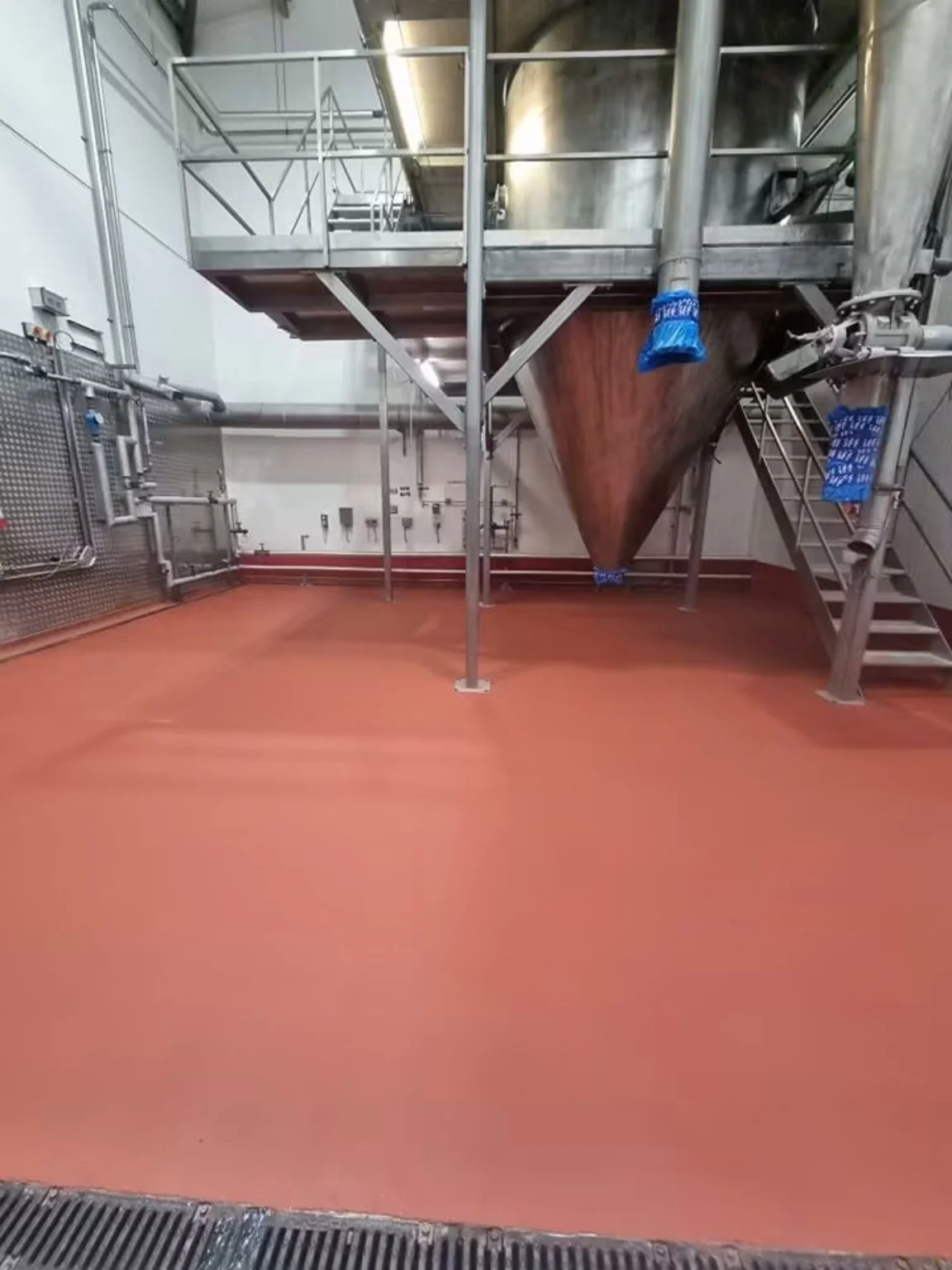

Completed red Resdev Pumadur HF polyurethane floor screed around food processing equipment in Ebbw Vale — Completed RAL 3001 Pumadur HF floor around the food-processing equipment

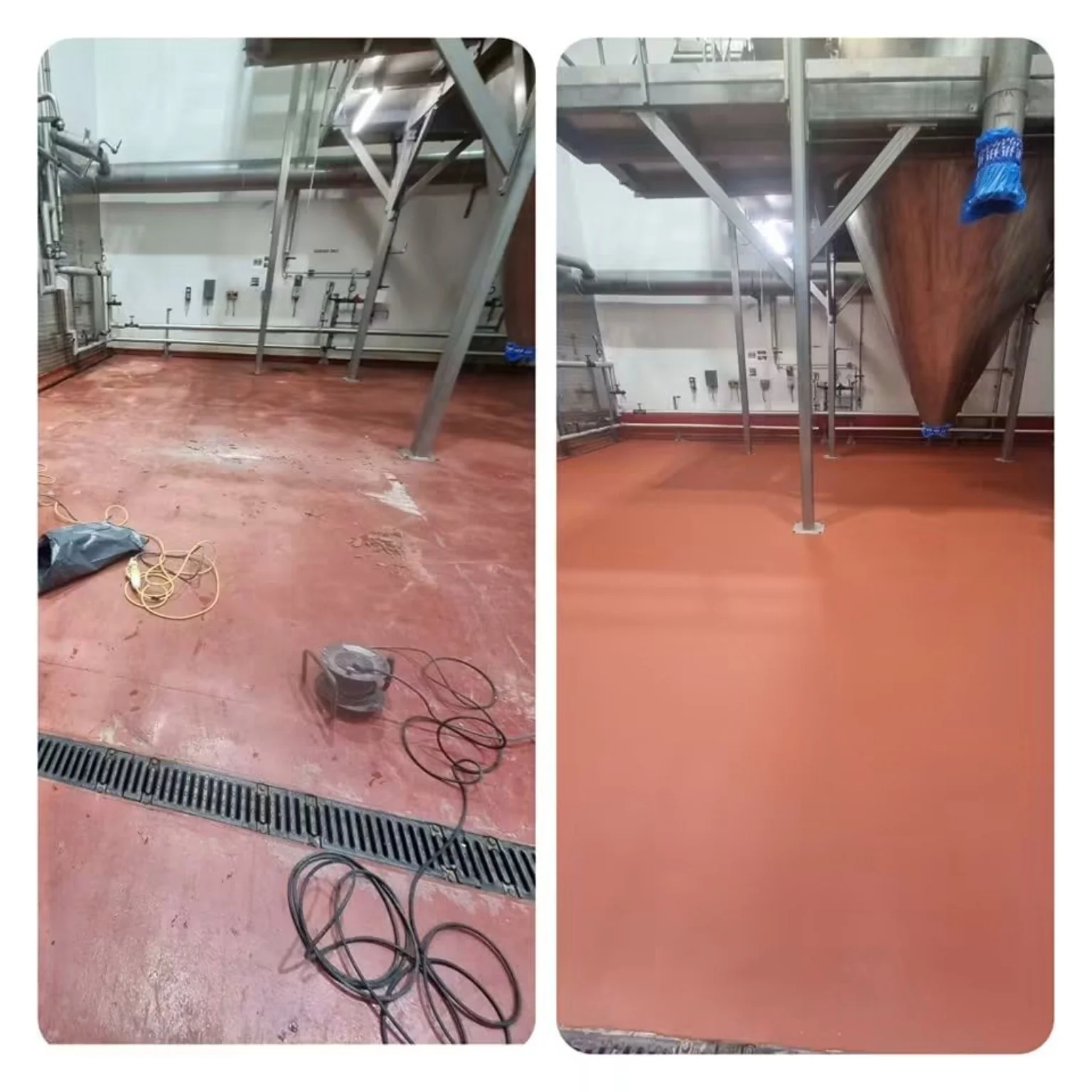

Polyurethane flooring with hygienic coving and red cladding band at Ebbw Vale food facility — Resin coving with the coordinated 600mm red perimeter band

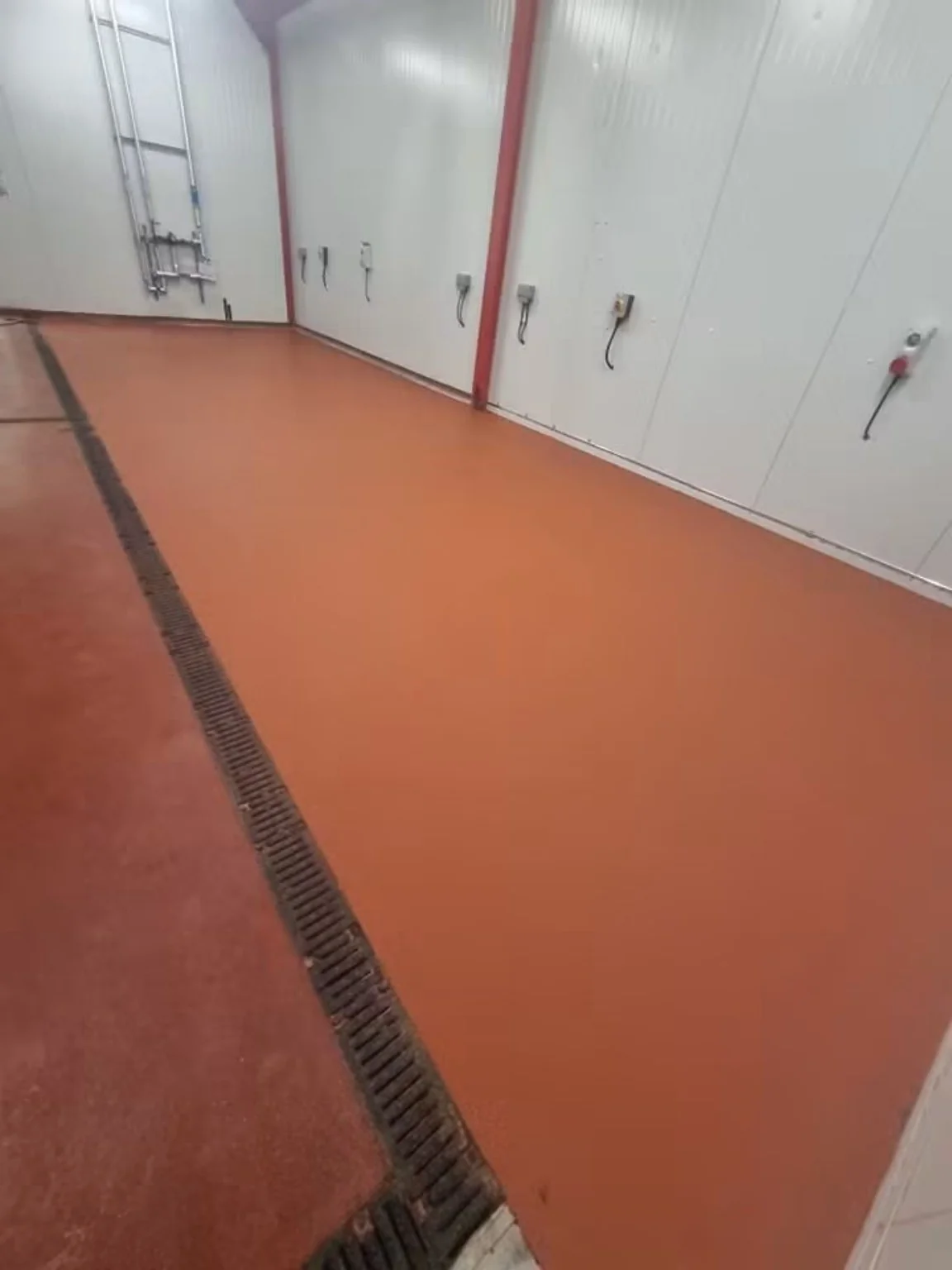

RAL 3001 polyurethane food factory flooring finished around channel drainage in Ebbw Vale

Client outcome

A successful project that developed into repeat work

Express Contract Drying was extremely happy with the completed flooring. Since the original December 2022 installation, Superior Resin Solutions has continued returning to the facility for further flooring works, typically two to three times each year.

Express Contract Drying Ltd · Ebbw Vale
Ongoing repeat flooring works following the original project
Established repeat SRS client

Related flooring services

Planning flooring for a food or process environment?

Explore the SRS services most closely related to this polyurethane screed project.

Food processing flooring FAQs

Questions about the Ebbw Vale project

How large was the Ebbw Vale flooring project?

The project covered approximately 120m² within the Express Contract Drying production facility in Ebbw Vale.

What flooring system was installed?

Superior Resin Solutions installed Resdev Pumadur HF heavy-duty polyurethane floor screed at approximately 6–9mm in a RAL 3001 red finish.

Why was Pumadur HF selected?

The system was selected around the hygiene requirements of the food-processing area, hot-water temperatures generated by the machinery, chemical exposure and the need for a durable long-term flooring solution.

How was the existing floor prepared?

The damaged and stained existing floor was removed. The concrete beneath was in reasonably good condition and was mechanically prepared by diamond grinding before priming and polyurethane screed installation.

How much resin coving was installed?

Approximately 55 linear metres of resin coving were installed around the processing area.

What was the red wall and cladding detail?

A 600mm-high RAL 3001 red band was applied to the surrounding cladding to complement the new floor and coving.

How long did the project take?

The complete flooring package was delivered in three days, including removal, diamond grinding, priming, Pumadur HF installation, coving and perimeter detailing.

Has Express Contract Drying used SRS again?

Yes. Following the original December 2022 project, SRS has continued completing further flooring works for the client, typically returning two to three times each year.
