Industrial flooring case study · Cardiff

450m² Heavy Duty Resin Flooring Installation in Cardiff

Q: How large was the Cardiff flooring project?

The project covered approximately 450 square metres within an existing welding workshop in Cardiff that was being converted into a training centre.

Q: How long did the project take?

The complete 450 square metre package took four days, including preparation, repairs, prime and scatter, installation of Pumadur HF polyurethane screed and final joint works.

Superior Resin Solutions prepared, repaired and refurbished approximately 450m² of concrete flooring inside a Cardiff welding workshop being converted into a training centre. A 9mm Resdev Pumadur HF heavy-duty polyurethane floor screed was installed in dark grey, with the complete flooring package delivered in four days.

Book a Free Site Survey
Call 07462 436607

450m²
9mm Pumadur HF
Heavy-duty polyurethane screed
Diamond grinding
Completed in 4 days
November 2022

Project snapshot

450m²

Workshop-to-training-centre refurbishmentExisting welding workshop converted into a training centre in Cardiff.

9mm

Resdev Pumadur HF polyurethane floor screedHeavy-duty system installed in a dark grey finish.

PREP

Diamond grinding and repairsCracks, minor concrete damage and joints were treated before the new floor was completed.

4 days

Complete four-day programmePreparation, repairs, prime and scatter, Pumadur HF installation and joint works.

The project brief

Converting a welding workshop into a durable training environment

In November 2022, Superior Resin Solutions was appointed to refurbish approximately 450m² of flooring within an existing welding workshop in Cardiff.

The building was being converted into a training centre, but the new space would still experience demanding use and regular impact. The client therefore required a robust flooring system selected for longevity rather than a short-term cosmetic finish.

The existing concrete contained minor damaged areas, cracks and joints that needed to be properly prepared and repaired before the new flooring could be installed.

Following preparation, SRS installed a 9mm Resdev Pumadur HF heavy-duty polyurethane floor screed in dark grey.

Approximately 450m² of existing concrete flooring
Minor concrete damage and cracking requiring epoxy mortar repairs
Existing joints requiring cutting through and treatment
Heavy-duty future use within the training environment

Project requirement: the finished floor needed to provide a durable and long-lasting surface capable of supporting the demanding use expected within the new training centre.

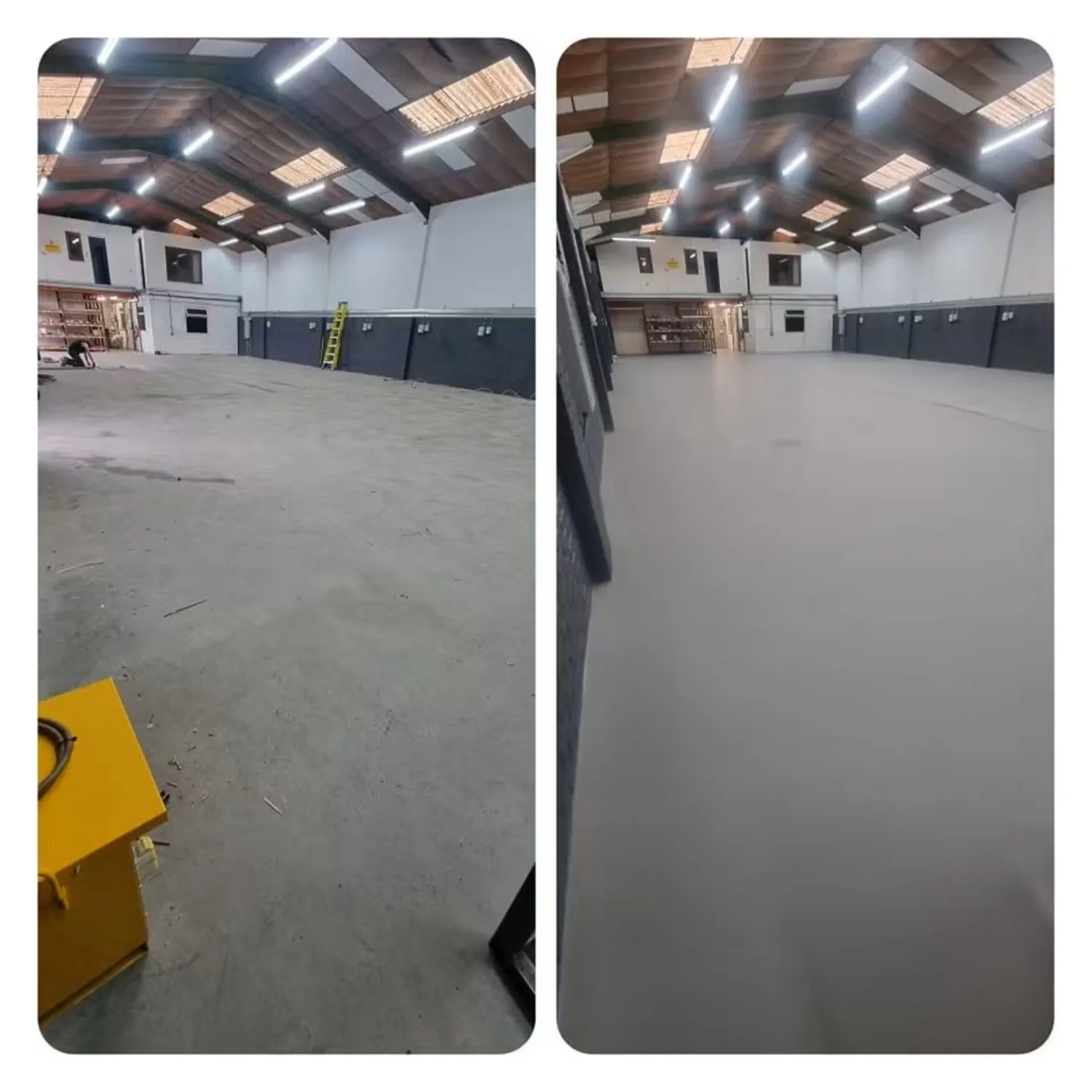

Before and after

The transformation across the workshop and adjoining areas

These genuine project photographs show the condition of the existing concrete and the completed dark grey finish after preparation, repairs and installation of the 9mm Resdev Pumadur HF polyurethane floor screed.

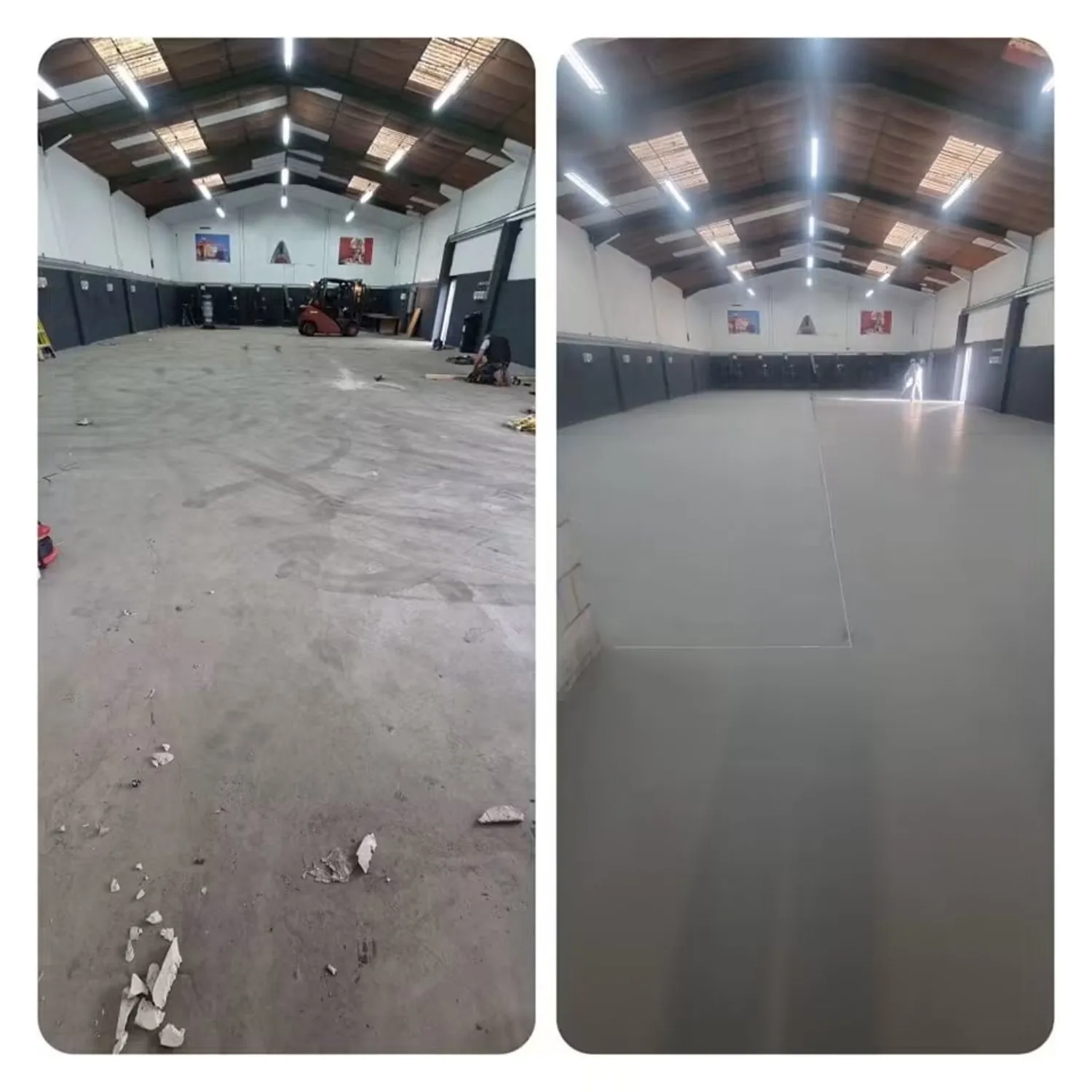

Main workshop

Main Cardiff workshop before and after Resdev Pumadur HF polyurethane flooring

Main training area transformation

The worn existing concrete was mechanically prepared and repaired before receiving the new heavy-duty dark grey Pumadur HF polyurethane floor screed.

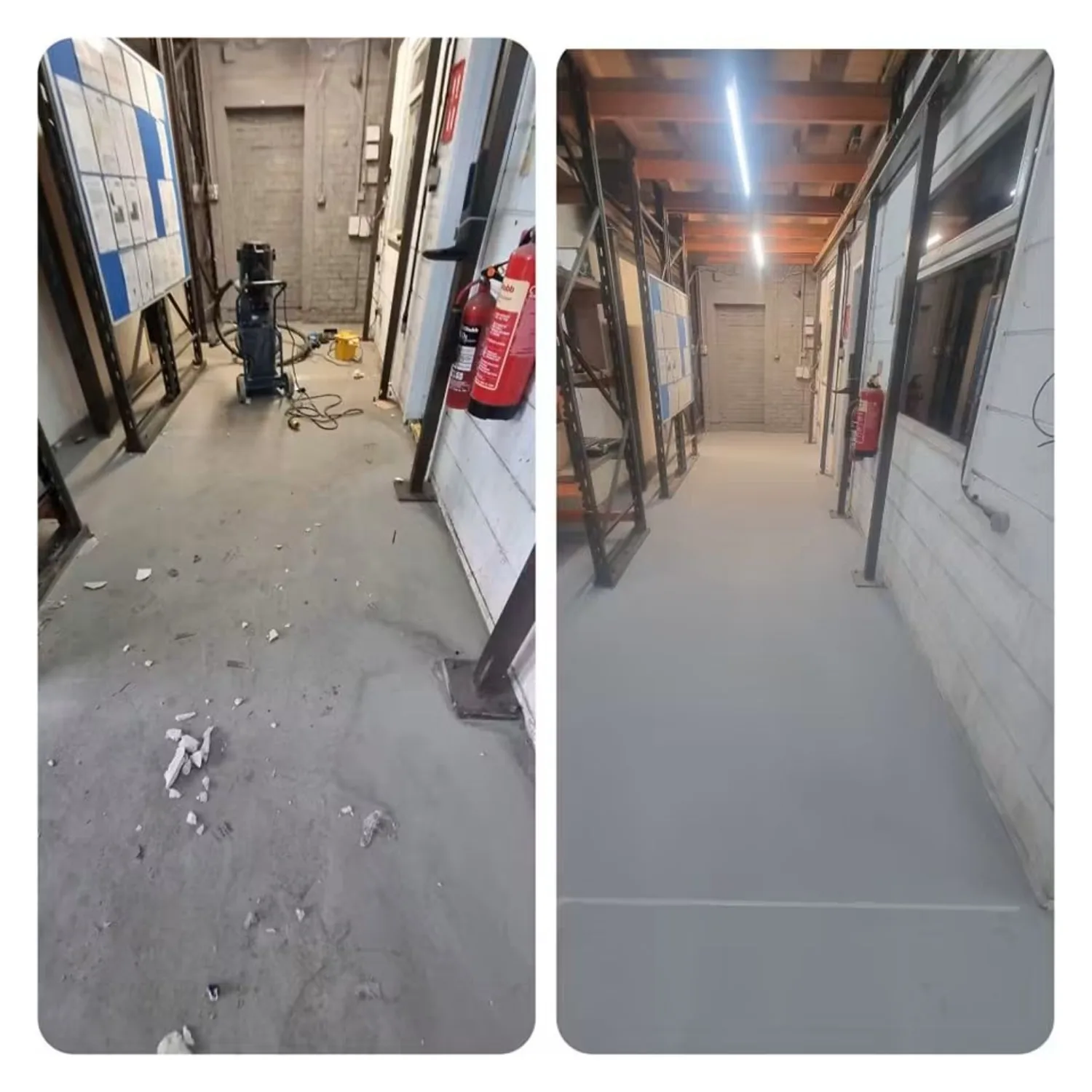

Adjoining area

Consistent finish beyond the main floor

The heavy-duty flooring continued through adjoining areas, creating a clean and consistent finish across the refurbished training facility.

Installed flooring system

9mm Resdev Pumadur HF heavy-duty polyurethane floor screed

The installation combined mechanical floor preparation, local epoxy repairs, priming and scatter, installation of the 9mm Pumadur HF polyurethane screed and detailed joint work.

ManufacturerResdev

Flooring systemPumadur HF heavy-duty polyurethane floor screed

Thickness and colour9mm · Dark Grey

Joint detailJoints cut through and filled using Resdev Expand Jointing Compound

Diamond grind the concrete

The concrete was mechanically prepared using diamond grinding with diamond tooling to create the required surface for the new flooring system.

Complete the epoxy repairs

Minor damaged areas and cracks were chased out and filled using epoxy mortar before installation of the new flooring build-up.

Prime and scatter

Following mechanical preparation and repairs, the substrate was primed and scattered ready for installation of the Pumadur HF polyurethane screed.

Install 9mm Pumadur HF and treat the joints

The dark grey Pumadur HF polyurethane floor screed was installed at 9mm before the joints were cut through and filled using Resdev Expand Jointing Compound.

Resdev flooring system

How the project was delivered

Complete preparation and installation delivered in four days

The full flooring programme covered mechanical preparation, concrete repairs, priming and scatter, Pumadur HF polyurethane screed installation and final joint works.

Prepare

The 450m² concrete floor was mechanically diamond ground using diamond tooling.

Repair

Cracks and minor damaged areas were chased out and repaired using epoxy mortar.

Control conditions

Cold November conditions required heaters to warm the room and flooring products during the installation programme.

Install and finish

The floor was primed and scattered, the 9mm Pumadur HF polyurethane screed installed, and the joints cut through and filled using Resdev Expand Jointing Compound.

The completed result

A heavy-duty polyurethane floor ready for the building’s new training role

The completed installation created a clean, robust dark grey surface selected for longevity and the demanding use expected within the training centre.

AREA

450m² completed

The workshop and training areas received the new heavy-duty polyurethane flooring system.

9MM

Heavy-duty polyurethane screed

A 9mm Resdev Pumadur HF system was installed in dark grey for a robust and long-lasting finish.

4 DAYS

Four-day delivery

Preparation, repairs, priming, polyurethane screed installation and joint works were completed in four days.

Further work requested

The client was extremely happy with the completed floor and contacted SRS one week later to price further work.

Wide view of completed 9mm Resdev Pumadur HF polyurethane floor in Cardiff training centre — Wide view of the completed 450m² heavy-duty polyurethane floor

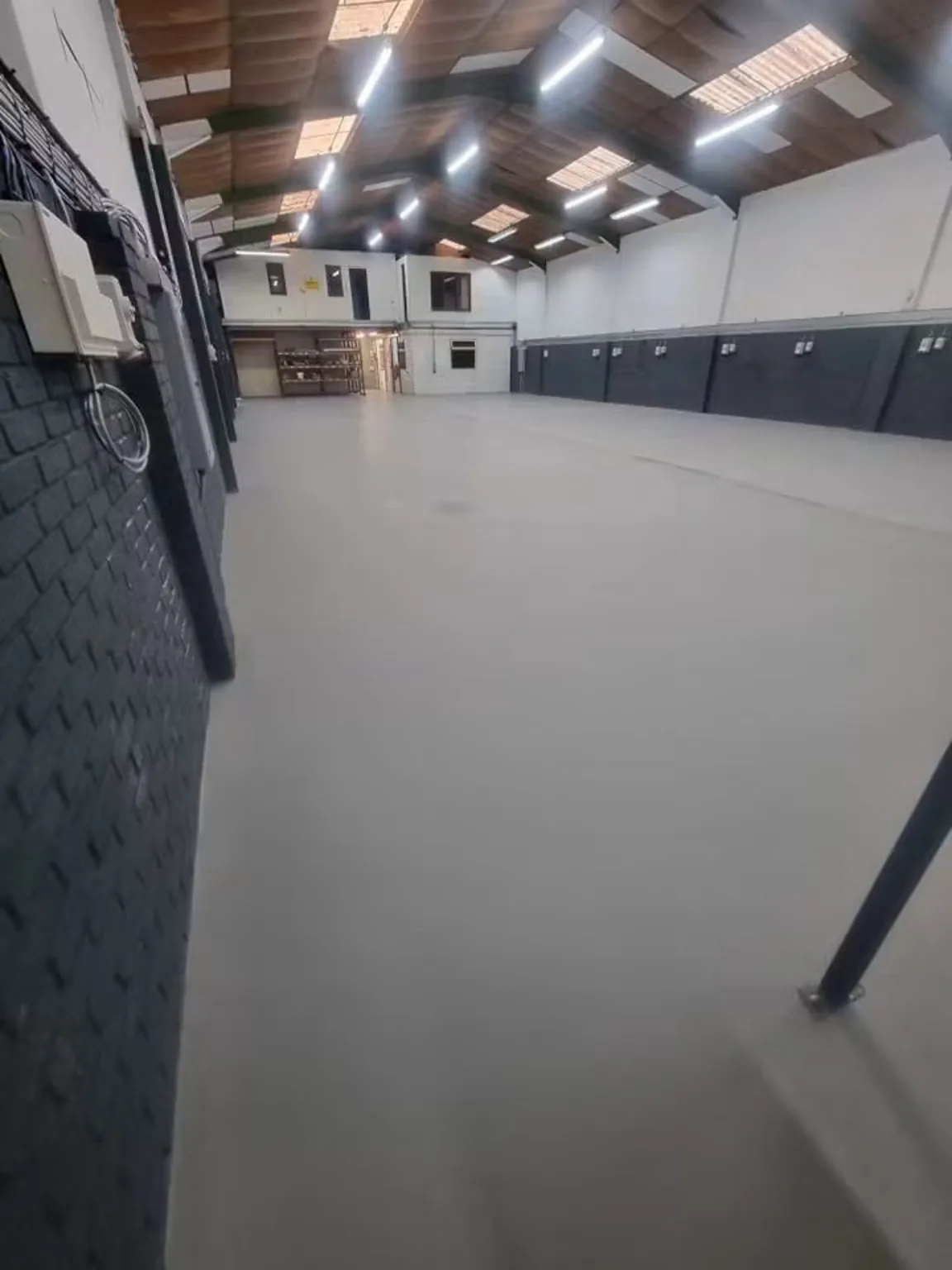

Completed dark grey 9mm Resdev Pumadur HF polyurethane flooring in Cardiff training centre — Finished dark grey Pumadur HF surface across the training facility

Client outcome

Further flooring work was being discussed within one week

The client was extremely happy with the completed training-centre floor and contacted Superior Resin Solutions just one week later to price additional work.

Confidential Cardiff client
The successful project developed into a repeat-client relationship
Repeat work generated from completed project

Related flooring services

Planning a workshop, industrial or heavy-duty flooring project?

Explore the SRS services most closely related to this Cardiff polyurethane screed project.

Heavy-duty flooring FAQs

Questions about the Cardiff training-centre project

How large was the Cardiff flooring project?

The project covered approximately 450m² within an existing welding workshop in Cardiff that was being converted into a training centre.

What flooring system was installed?

Superior Resin Solutions installed a 9mm Resdev Pumadur HF heavy-duty polyurethane floor screed in a dark grey finish.

How was the existing floor prepared?

The existing concrete was mechanically prepared using diamond grinding with diamond tooling.

How were the cracks and damaged areas repaired?

Minor damage and cracks were chased out and filled using epoxy mortar before installation of the polyurethane flooring system.

How were the floor joints treated?

The joints were cut through and filled using Resdev Expand Jointing Compound.

How long did the project take?

The complete 450m² package took four days, including preparation, repairs, prime and scatter, installation of Pumadur HF polyurethane screed and final joint works.

How were the cold conditions managed?

Heaters were brought into the building to warm the room and flooring products during the cold November conditions.

Was the client satisfied with the finished floor?

Yes. The client was extremely happy with the completed flooring and contacted Superior Resin Solutions one week later to price additional work.
